50μm transparent interdigital electrode quartz glass capacitor array MEMS gas biosensor photoelectric detection
| 【Numbering】BK2021012711 | 【CAS】cas | ||
| 【Item No.】BK2021012711 | 【specification】 | ||
|
|||

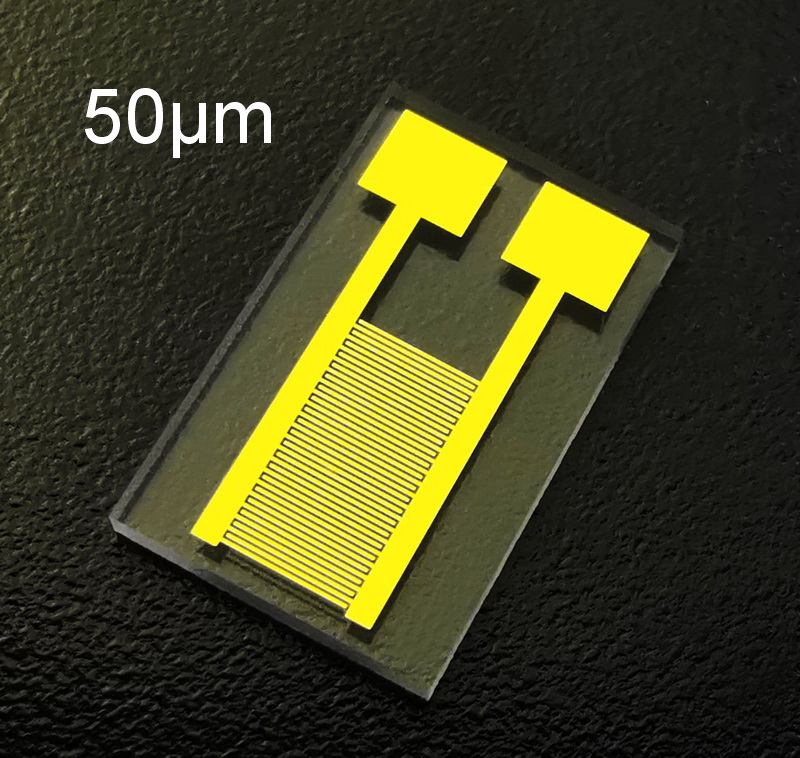

50 micron transparent interdigital electrode quartz glass gas humidity biosensor chip MEMS

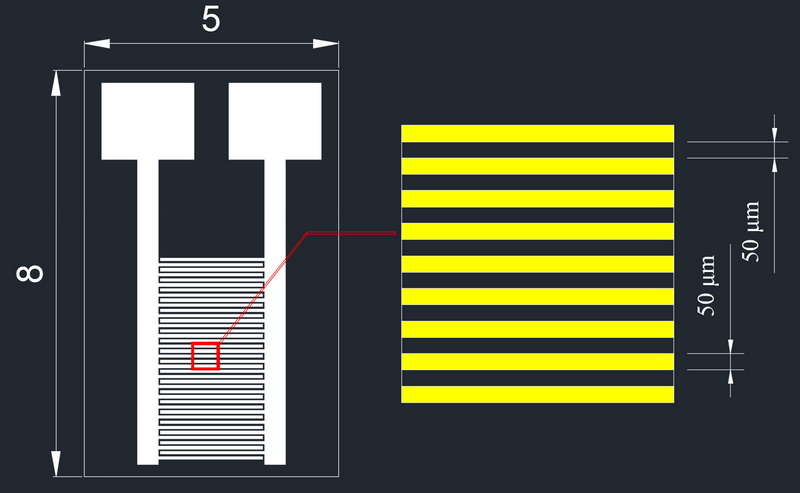

1. Dimensions: 5mm*8mm*0.7mm.
2. Line width: 50um, line distance: 50um, finger length: 2.1mm, number of interdigital pairs: 20 (40 fingers) 3. Electrode substrate is quartz glass, polished on both sides, fully transparent;
4. Metal layer structure: Cr/Au, thickness is 30nm, 100nm respectively; 5. Electrode operating temperature range: -150℃~400℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 7. Large quantity and preferential price.
Message
1. Dimensions: 5mm*8mm*0.7mm.
2. Line width: 50um, line distance: 50um, finger length: 2.1mm, number of interdigital pairs: 20 (40 fingers) 3. Electrode substrate is quartz glass, polished on both sides, fully transparent;
4. Metal layer structure: Cr/Au, thickness is 30nm, 100nm respectively; 5. Electrode operating temperature range: -150℃~400℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 7. Large quantity and preferential price.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, PCB process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
