80μm fully transparent ITO conductive glass interdigital electrode capacitance array gas biosensor photoelectric detection
| 【Numbering】BK2021012709 | 【CAS】cas | ||
| 【Item No.】BK2021012709 | 【specification】 | ||
|
|||

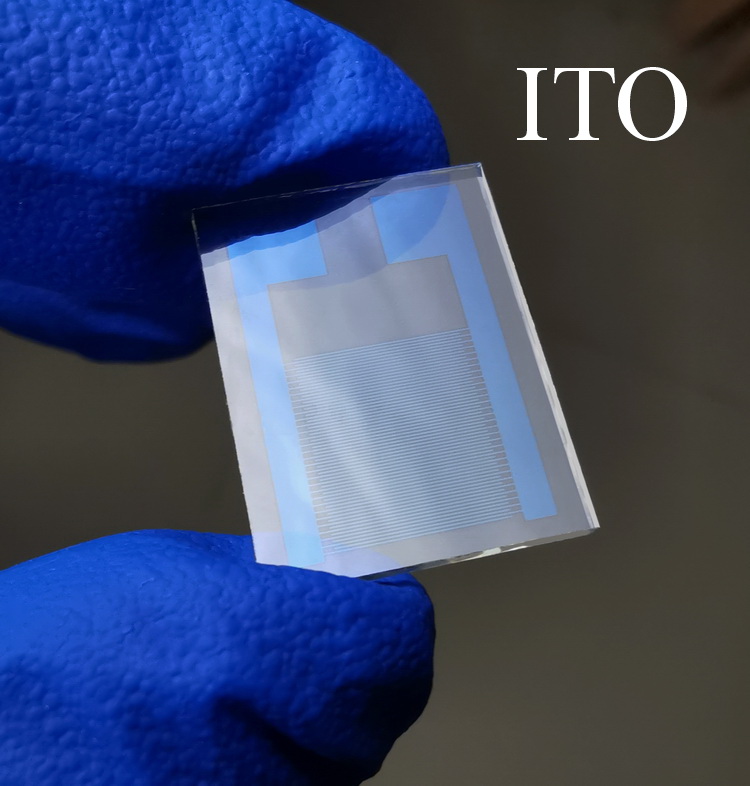

80um fully transparent ITO film glass interdigital electrode capacitance array gas biosensor photoelectric detection

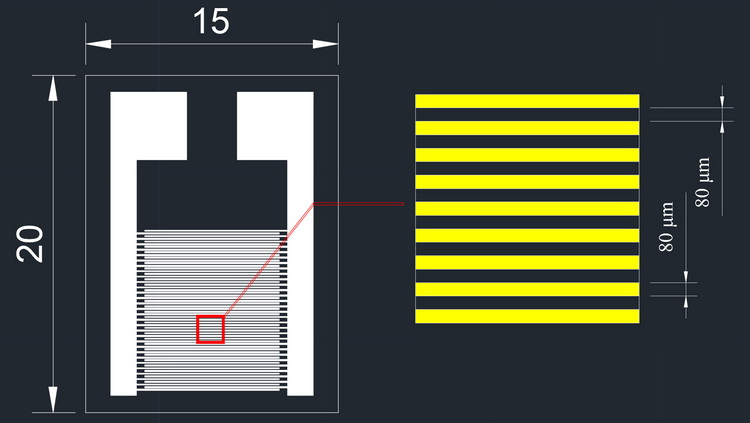

1. Dimensions: 15mm*20mm*1.1mm.
2. Line width: 80um, line spacing: 8oum, finger length: 8.5mm, interdigital logarithm: 30 (60 fingers).
3. The electrode substrate is soda lime glass, fully transparent;
4. Conductive layer composition: ITO film (steel tin oxide), thickness of 185nm, square resistance ≤ 6Q, transmittance ≥ 84%, and the film layer is light blue.
5. Electrode operating temperature range: -150℃~500℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality.
7. Large quantity and preferential price.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths, different substrates (oxidized
Message
1. Dimensions: 15mm*20mm*1.1mm.
2. Line width: 80um, line spacing: 8oum, finger length: 8.5mm, interdigital logarithm: 30 (60 fingers).
3. The electrode substrate is soda lime glass, fully transparent;
4. Conductive layer composition: ITO film (steel tin oxide), thickness of 185nm, square resistance ≤ 6Q, transmittance ≥ 84%, and the film layer is light blue.
5. Electrode operating temperature range: -150℃~500℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality.
7. Large quantity and preferential price.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths, different substrates (oxidized
Aluminum ceramics, PI/PET flexible materials, monocrystalline silicon), different processes (thick film process, PCB process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
