45 micron flexible interdigital electrode PET capacitance array gas humidity medical sensor chip IDE
| 【Numbering】BK2021012705 | 【CAS】cas | ||
| 【Item No.】BK2021012705 | 【specification】 | ||
|
|||

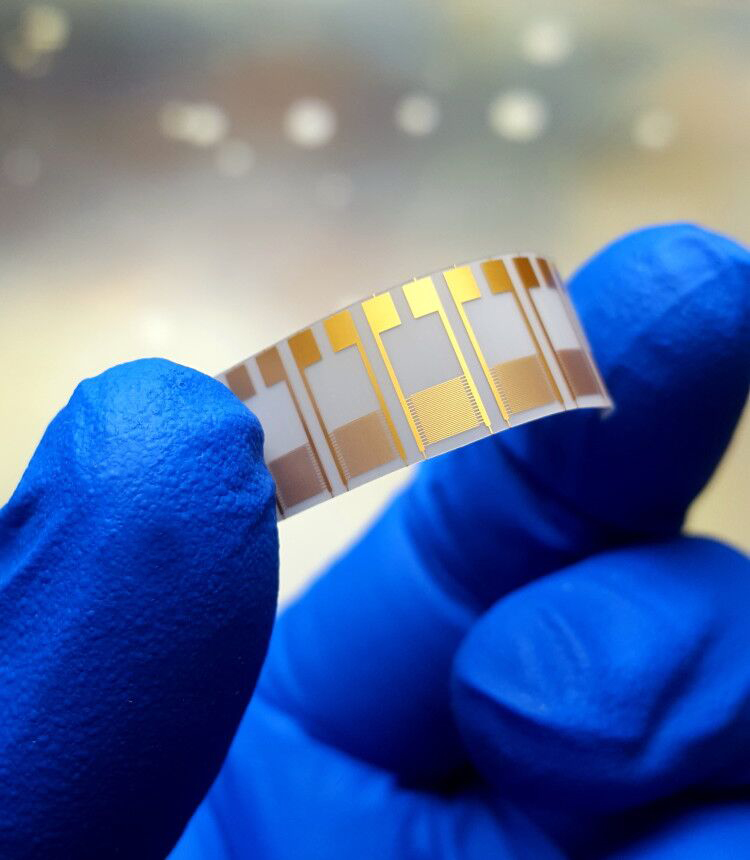

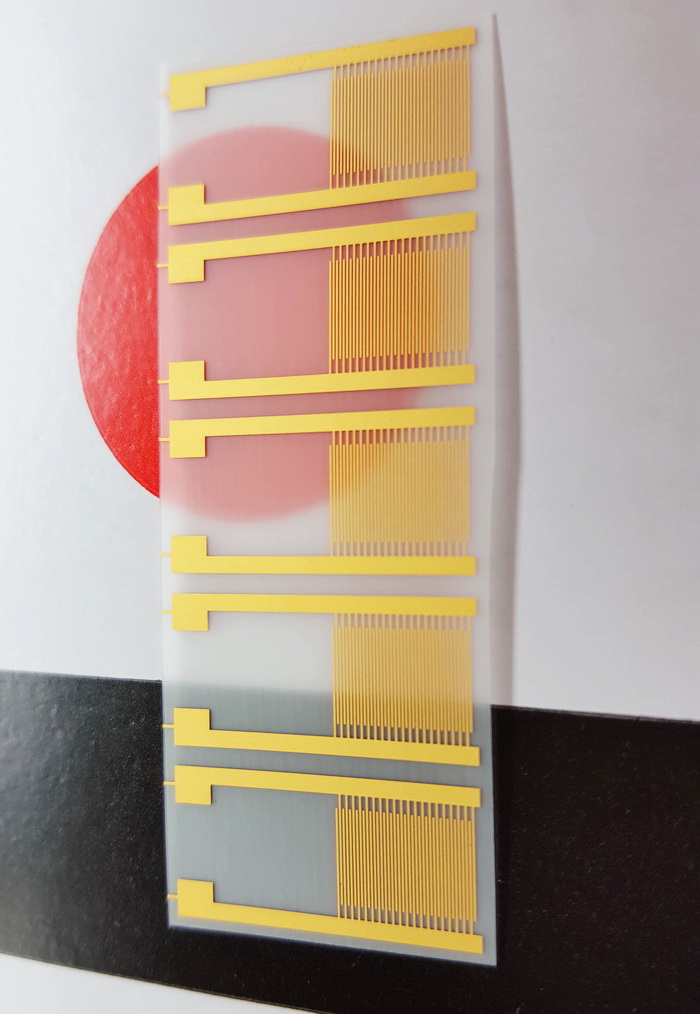

Flexible PET interdigital electrode IDE biogas humidity sensor capacitance array

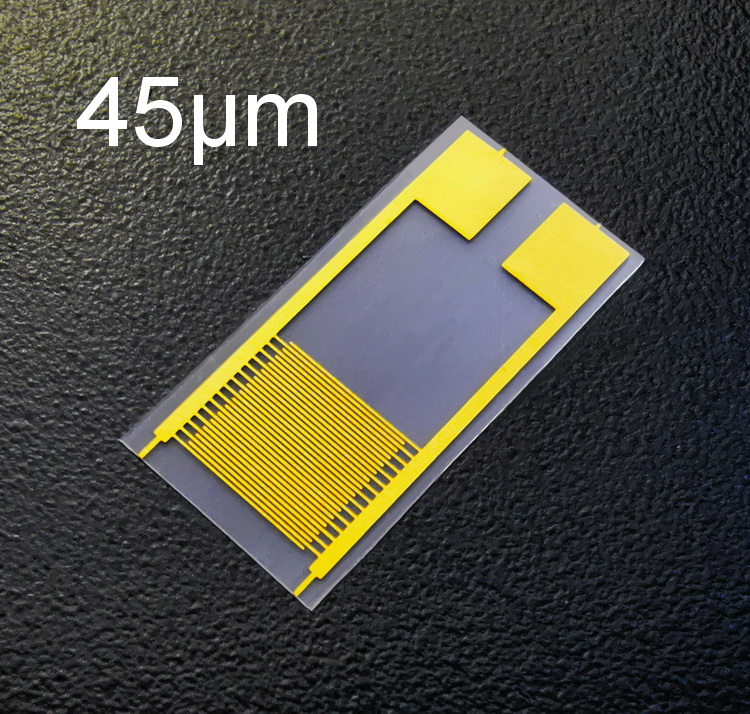

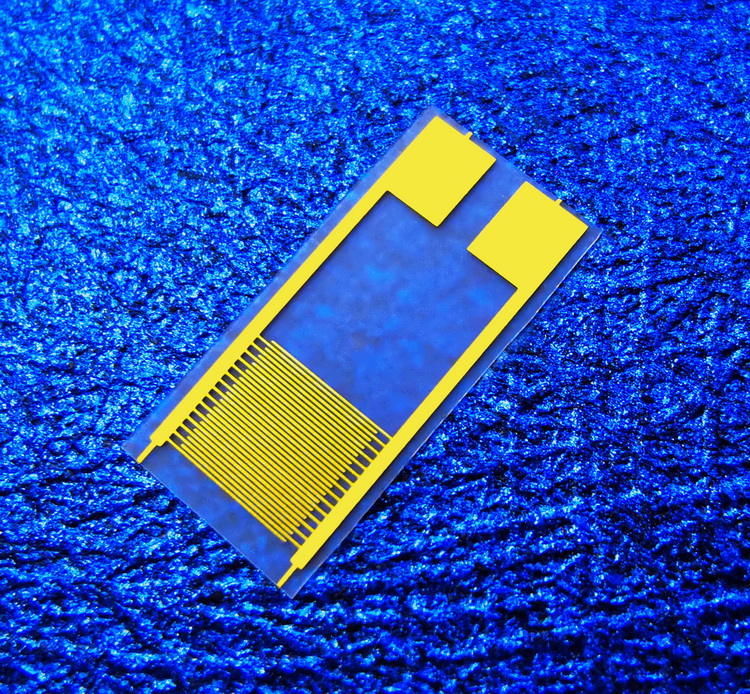

1. Substrate: Polyethylene terephthalate (PET), thickness 70um, external dimension 5mm*10mm. 2. The line width is 45um, the line spacing is 55um, and the finger length is 3.3mm. Interdigital pairs: 15 pairs (30 fingers). 3. The metal layer structure cu/Ni/Au has a thickness of 13um, 1.5um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
Message
1. Substrate: Polyethylene terephthalate (PET), thickness 70um, external dimension 5mm*10mm. 2. The line width is 45um, the line spacing is 55um, and the finger length is 3.3mm. Interdigital pairs: 15 pairs (30 fingers). 3. The metal layer structure cu/Ni/Au has a thickness of 13um, 1.5um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
Message
|
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance.The website pictures are from the Internet. The pictures are for reference only. Please take the real object as the standard. In case of infringement, please contact us to delete them immediately. |
