100μm large-size flexible interdigital electrode PET capacitor array scientific research experiment sensor chip gold electrode
| 【Numbering】BK2021012704 | 【CAS】cas | ||
| 【Item No.】BK2021012704 | 【specification】 | ||
|
|||

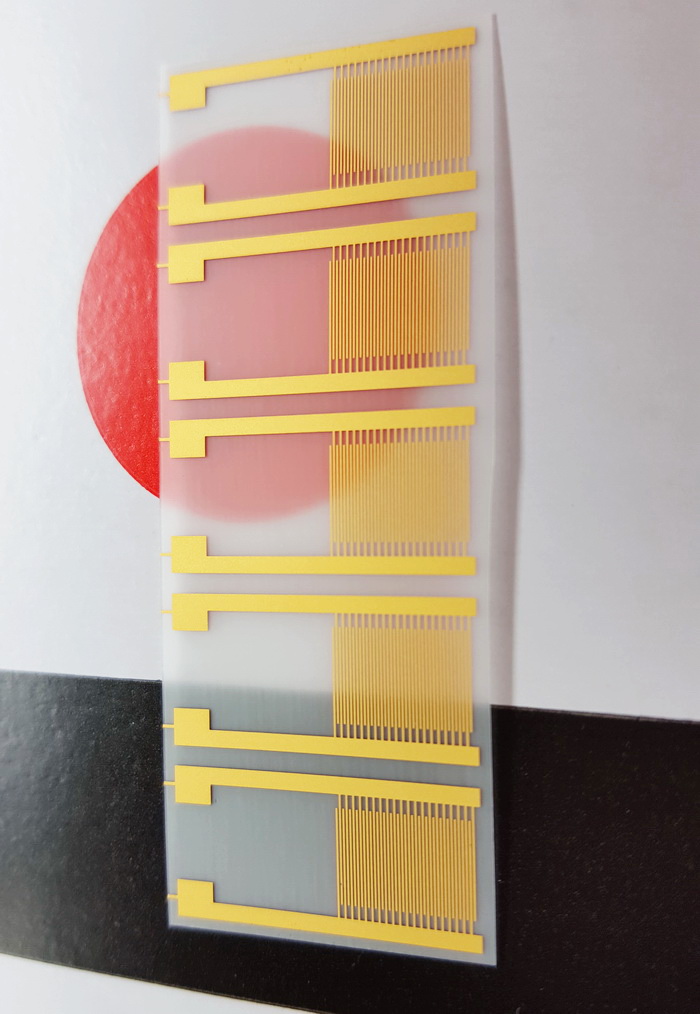

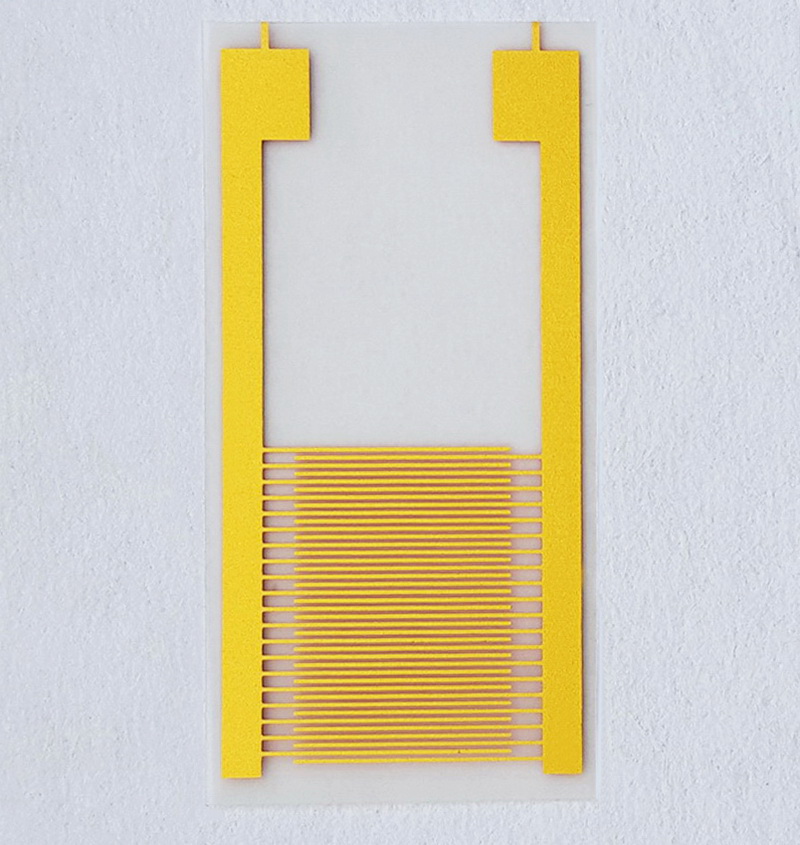

Easy to operate large-size flexible PET interdigital electrode biogas humidity sensor capacitance array
1. Electrode substrate: polyethylene terephthalate (PET), thickness 7oum, overall dimensions
20mm*10mm.

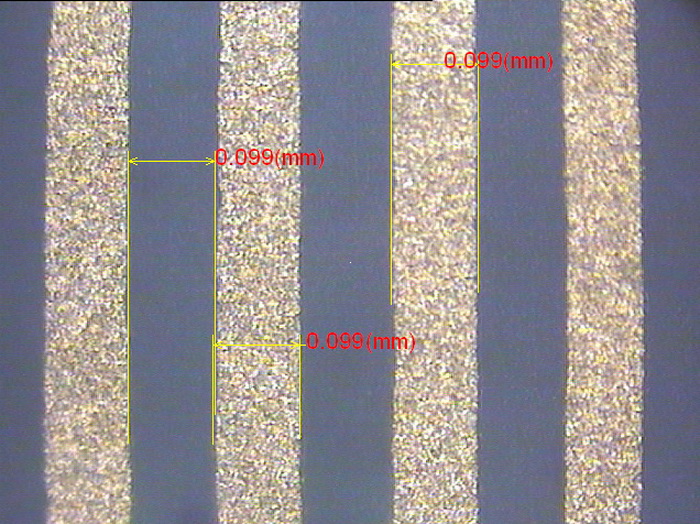

2. The line width is 100um, the line spacing is 100um, and the finger length is 6.3mm. Interdigital pairs: 20 pairs (40 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12um, 3um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
Message
1. Electrode substrate: polyethylene terephthalate (PET), thickness 7oum, overall dimensions
20mm*10mm.
2. The line width is 100um, the line spacing is 100um, and the finger length is 6.3mm. Interdigital pairs: 20 pairs (40 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12um, 3um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
Message
|
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance.The website pictures are from the Internet. The pictures are for reference only. Please take the real object as the standard. In case of infringement, please contact us to delete them immediately. |
