50 micron flexible PET large size interdigital electrode biogas humidity sensor is easy to operate
| 【Numbering】BK2021012703 | 【CAS】cas | ||
| 【Item No.】BK2021012703 | 【specification】 | ||
|
|||

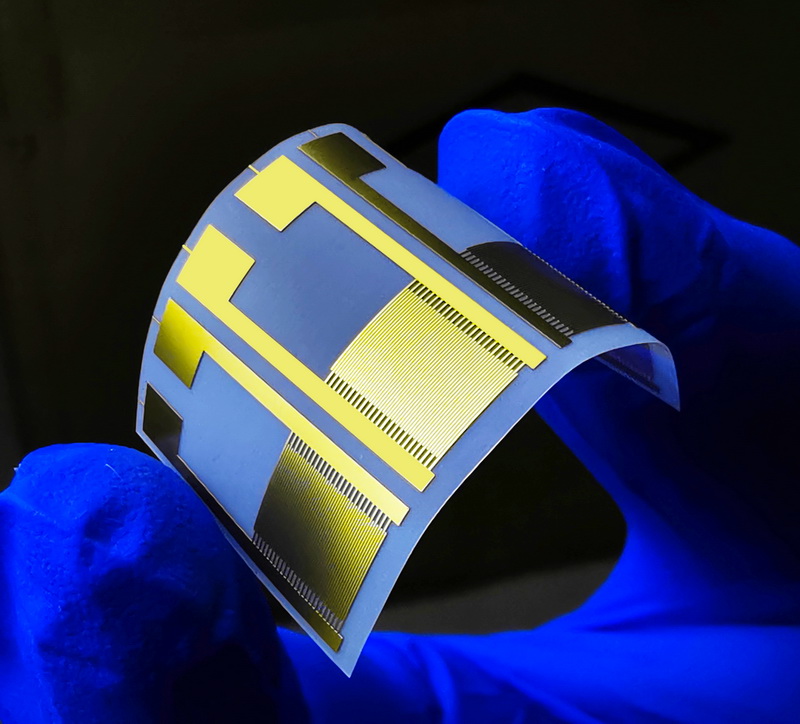

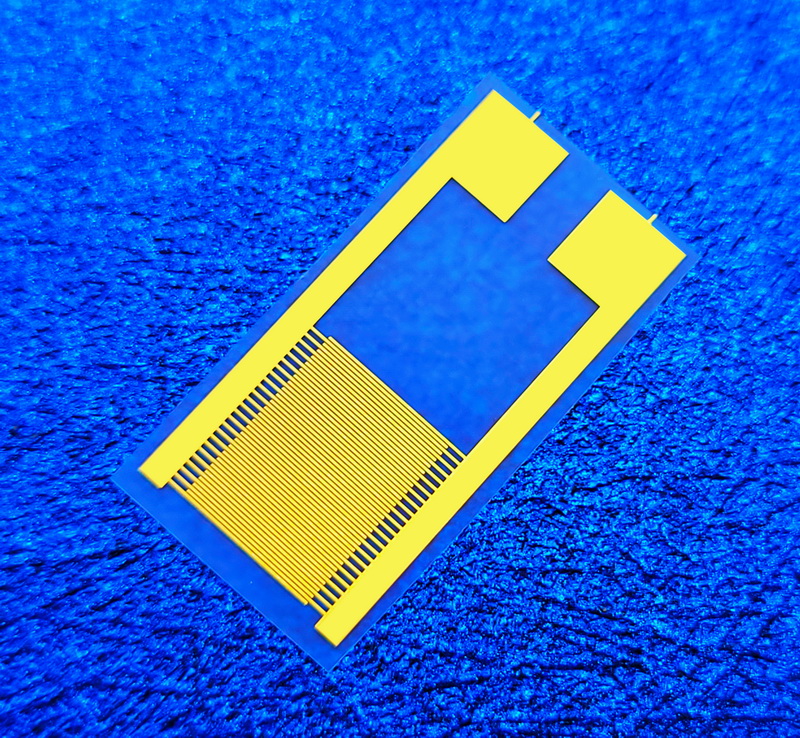

50 micron flexible PET interdigital electrode biogas humidity sensor large size

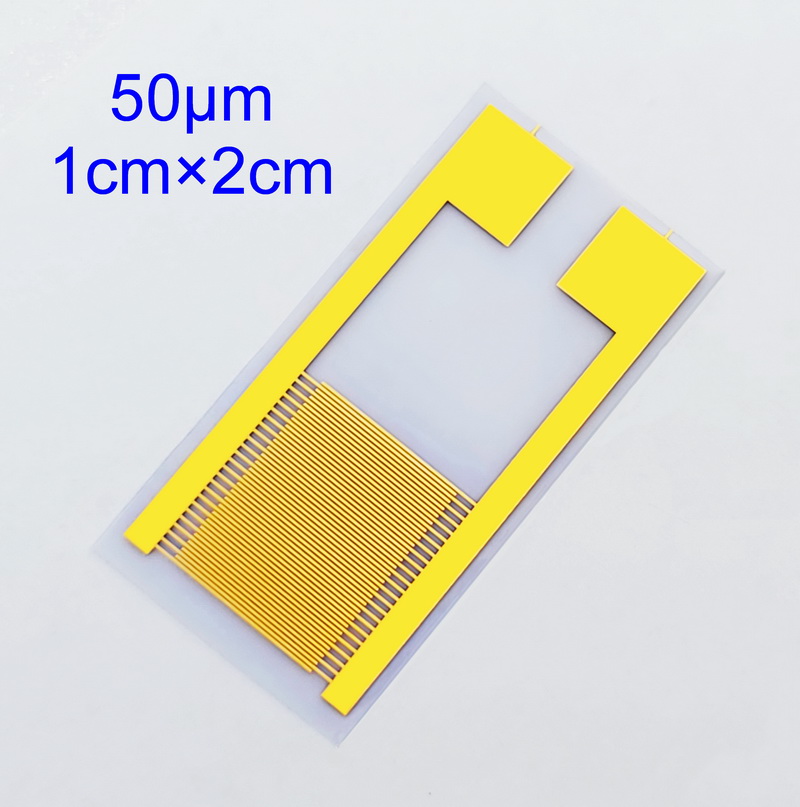

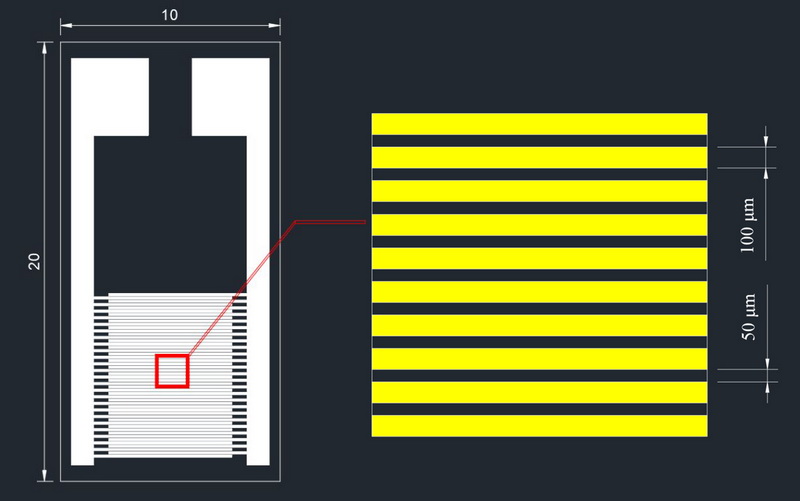

1. Electrode base material: polyethylene terephthalate (PET), thickness 60um, external dimension 20mm*10mm.
2. The line width is 100um, the line spacing is 50um, and the finger length is 6.3mm. Interdigital pairs: 25 pairs (50 fingers).
3. The metal layer structure Cu/Ni/Au, the thickness is 12um, 3um, 1um respectively. 4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
Message
1. Electrode base material: polyethylene terephthalate (PET), thickness 60um, external dimension 20mm*10mm.
2. The line width is 100um, the line spacing is 50um, and the finger length is 6.3mm. Interdigital pairs: 25 pairs (50 fingers).
3. The metal layer structure Cu/Ni/Au, the thickness is 12um, 3um, 1um respectively. 4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
