50μm flexible interdigital electrode PET capacitance array humidity biomedical smart wearable sensor IDE
| 【Numbering】BK2021012702 | 【CAS】cas | ||
| 【Item No.】BK2021012702 | 【specification】 | ||
|
|||

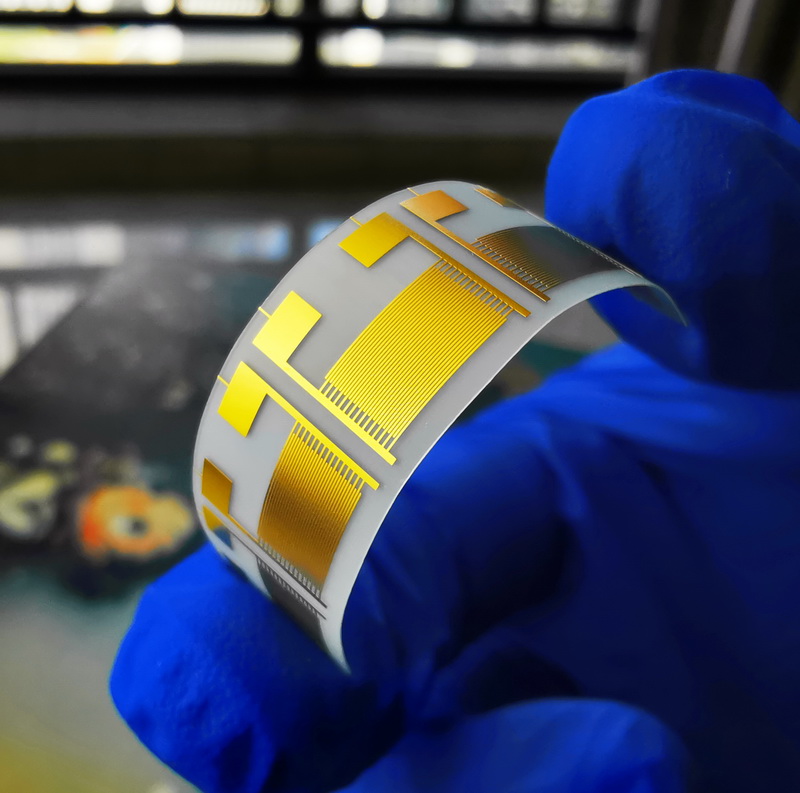

Flexible PET interdigital electrode IDE medical gas biological humidity sensor smart wear

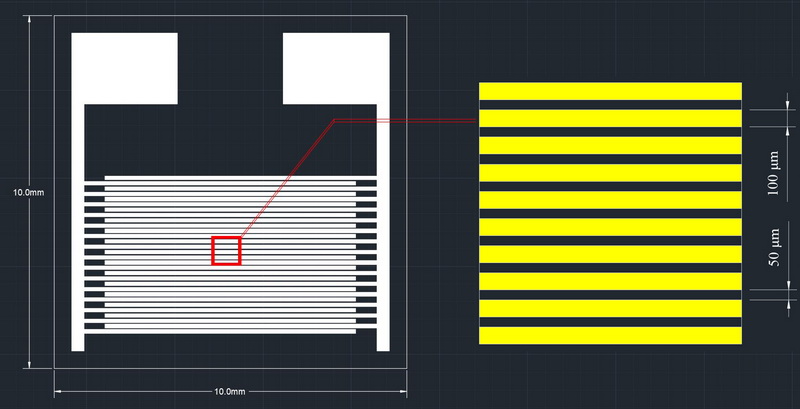

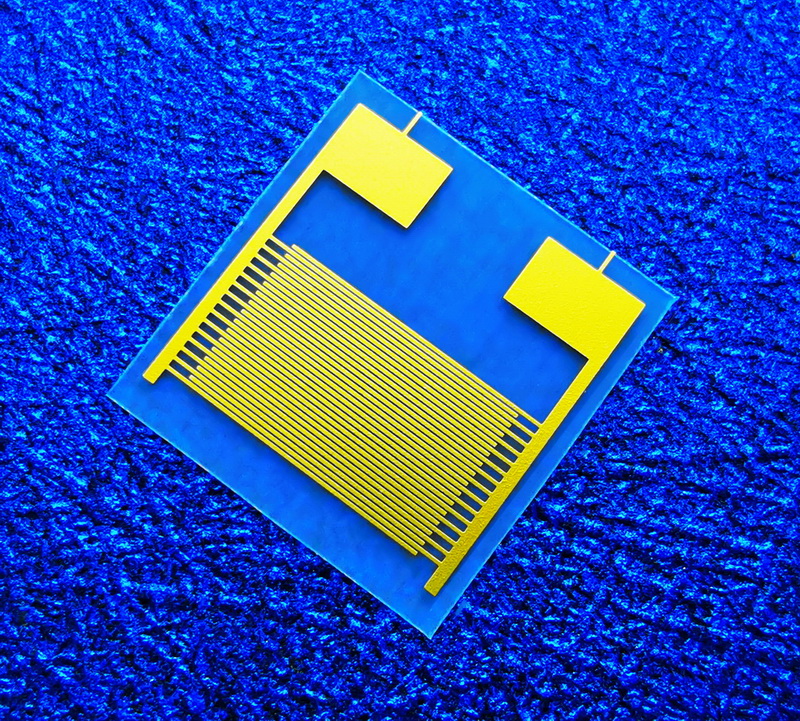

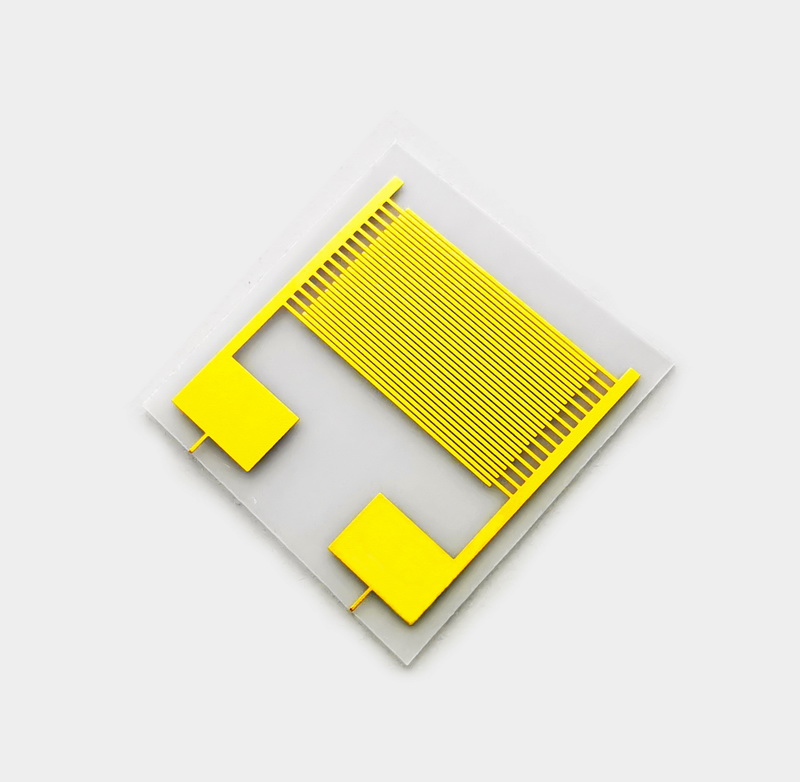

1. Electrode base material: polyethylene terephthalate (PET), thickness 60um, external dimension 10mm*10mm. It has a reinforced backing and is easy to operate.
2. The line width is 100 μm, the line distance is 50 μm, and the length is 7.7mm. Interdigital pairs: 15 pairs (30 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12 μm, 3 μm, and 1 μm respectively.
4. Electrode temperature range: -50℃~120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
Message
1. Electrode base material: polyethylene terephthalate (PET), thickness 60um, external dimension 10mm*10mm. It has a reinforced backing and is easy to operate.
2. The line width is 100 μm, the line distance is 50 μm, and the length is 7.7mm. Interdigital pairs: 15 pairs (30 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12 μm, 3 μm, and 1 μm respectively.
4. Electrode temperature range: -50℃~120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
