100μm flexible interdigital electrode IDE capacitor array medical gas and humidity biosensor chip PI
| 【Numbering】BK2021012601 | 【CAS】cas | ||
| 【Item No.】BK2021012601 | 【specification】 | ||
|
|||

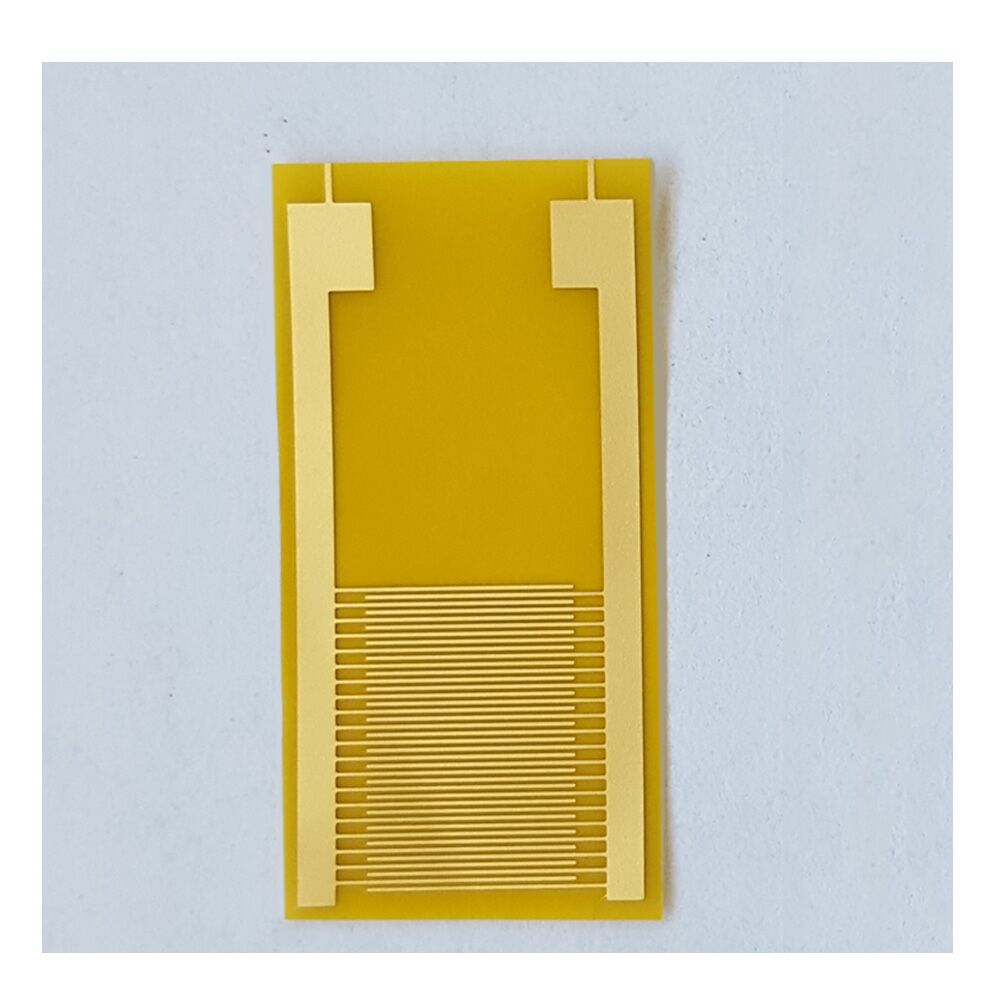

100um flexible interdigital electrode (PI) capacitance array medical gas and humidity sensor wearable

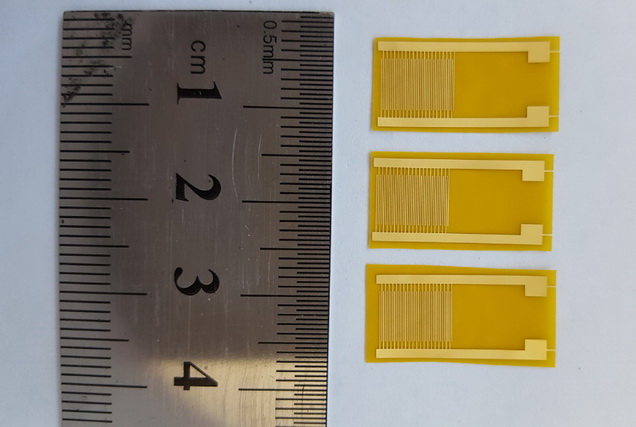

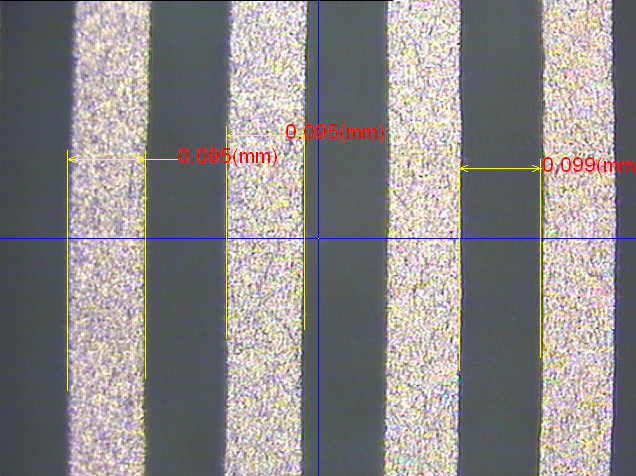

1. Matrix: Polyimide (PI); PI thickness: 13 um; dimensions: 10mm×20mm. 2. Line width: 100 um; Line distance: 100 um; Finger length: 6.3mm; Interdigital number: 20 (40 fingers). 3. Conductive layer structure: copper/nickel/gold with thicknesses of 12um, 3um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and biological sensors, with reliable performance and stable quality.
Message
1. Matrix: Polyimide (PI); PI thickness: 13 um; dimensions: 10mm×20mm. 2. Line width: 100 um; Line distance: 100 um; Finger length: 6.3mm; Interdigital number: 20 (40 fingers). 3. Conductive layer structure: copper/nickel/gold with thicknesses of 12um, 3um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and biological sensors, with reliable performance and stable quality.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS technology).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
Message
|
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance.The website pictures are from the Internet. The pictures are for reference only. Please take the real object as the standard. In case of infringement, please contact us to delete them immediately. |
