30 micron monocrystalline silicon interdigital electrode photoelectric detection gas humidity biosensor chip MEMS high precision
| 【Numbering】BK2021012610 | 【CAS】cas | ||
| 【Item No.】BK2021012610 | 【specification】 | ||
|
|||

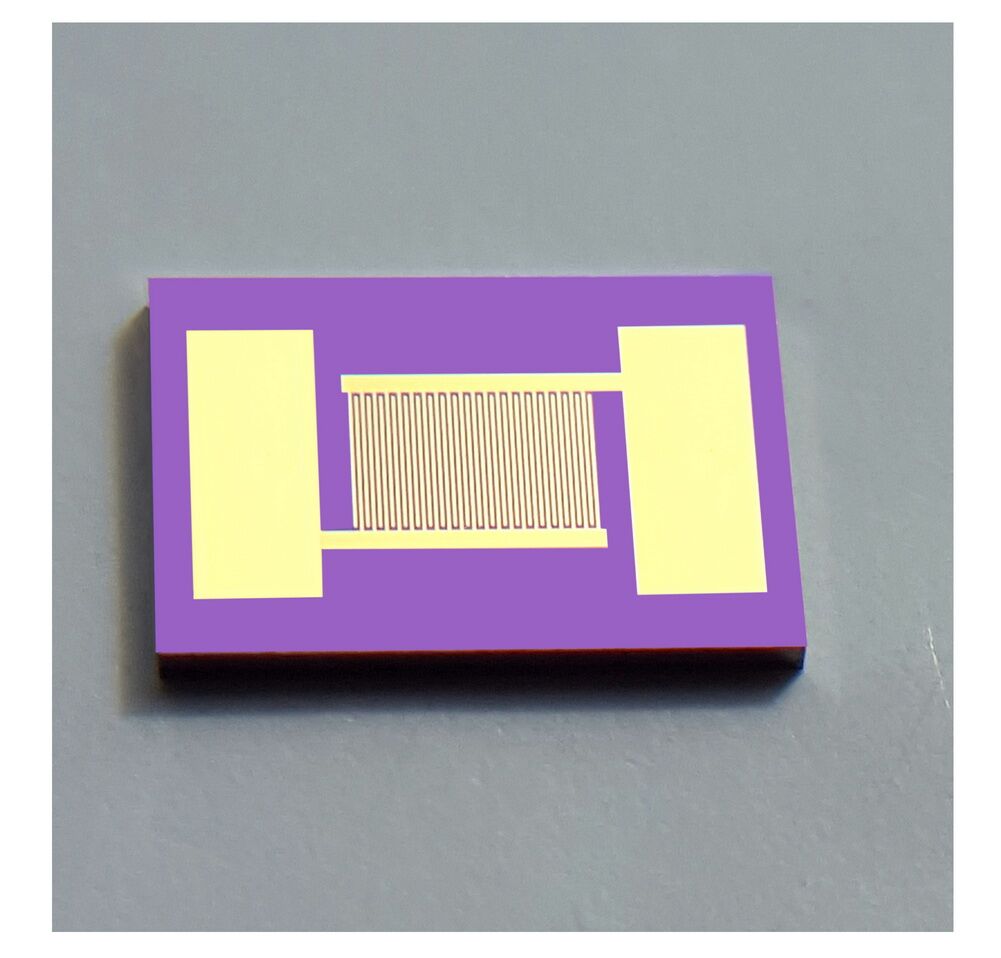

30 micron silicon-based interdigital electrode photoelectric detection gas humidity biosensor MEMS process

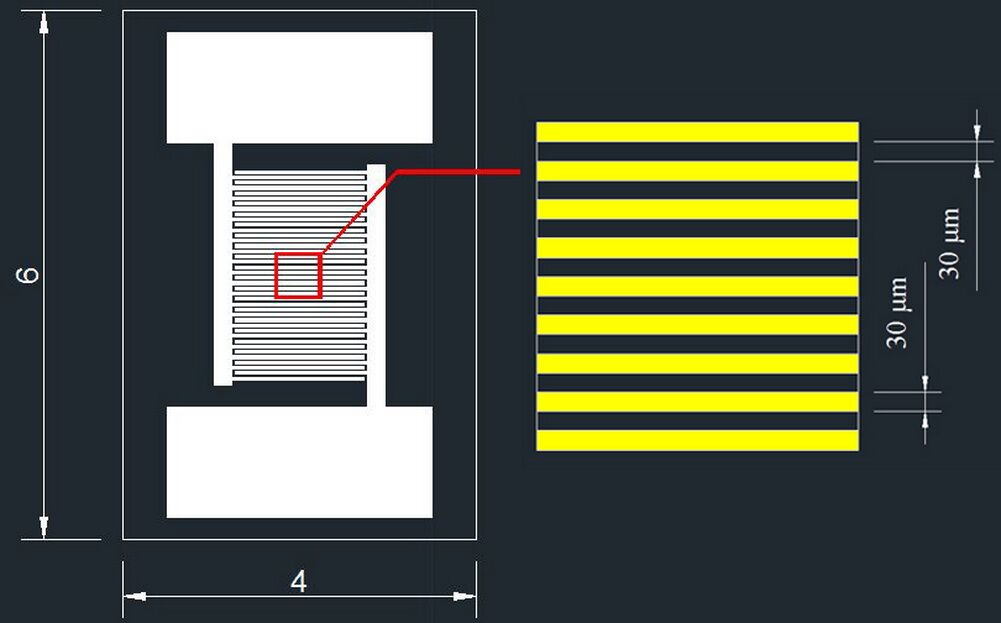

1. Dimensions: 4mm*6mm*0.52mm.

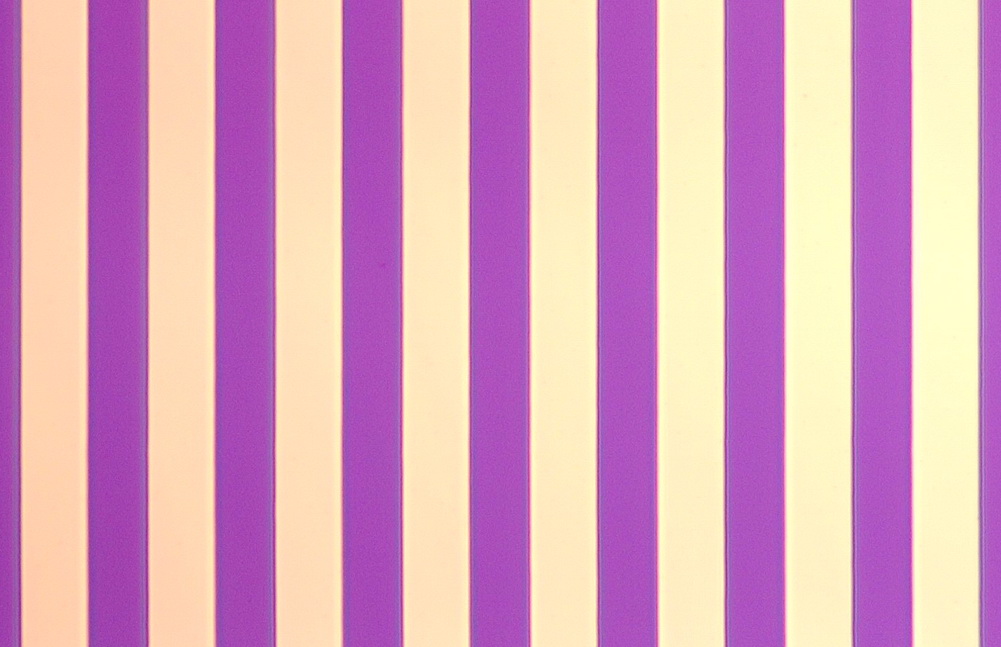

2. Line width: 30um, line distance: 30um, finger length: 1.5mm, number of interdigital fingers: 20 (40 fingers). 3. The electrode substrate is monocrystalline silicon, and SiO2 is grown on the surface of the silicon wafer with a thickness of 300nm; 4. Metal layer structure: Cr/Au, thickness of 10nm, 100nm respectively;
5. Electrode operating temperature range: -150℃～500℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 7. Large quantity and preferential price.
Message
1. Dimensions: 4mm*6mm*0.52mm.
2. Line width: 30um, line distance: 30um, finger length: 1.5mm, number of interdigital fingers: 20 (40 fingers). 3. The electrode substrate is monocrystalline silicon, and SiO2 is grown on the surface of the silicon wafer with a thickness of 300nm; 4. Metal layer structure: Cr/Au, thickness of 10nm, 100nm respectively;
5. Electrode operating temperature range: -150℃～500℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 7. Large quantity and preferential price.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PIV/PET flexible materials, monocrystalline silicon), and different processes (thick film process, PCB process, MEMS process)).
