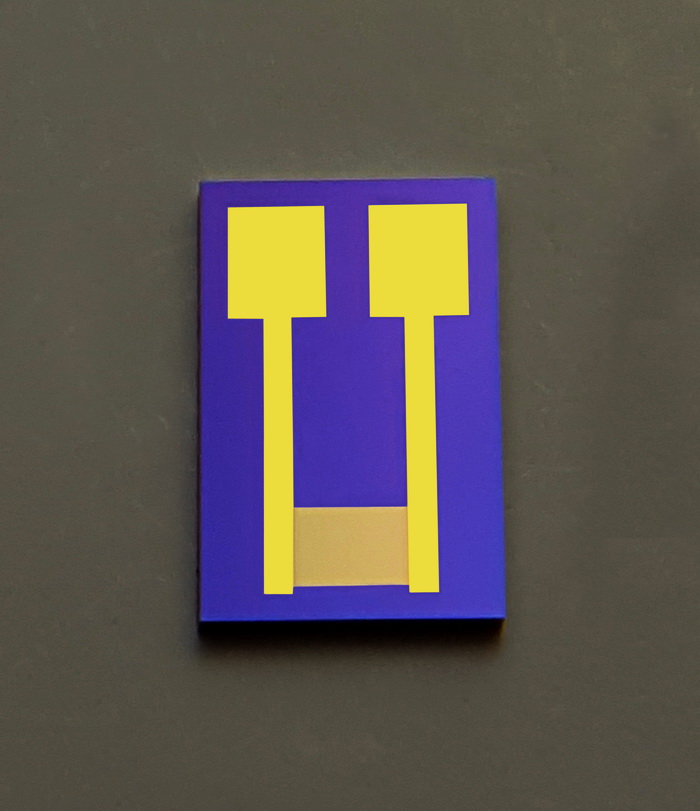

1. Dimensions: 6.5mm*4mm*0.52mm.

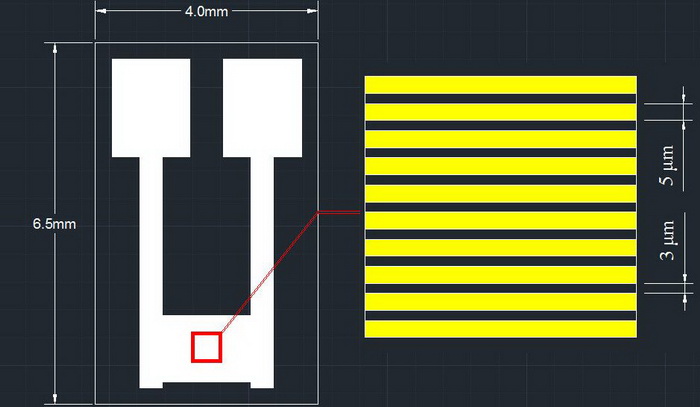

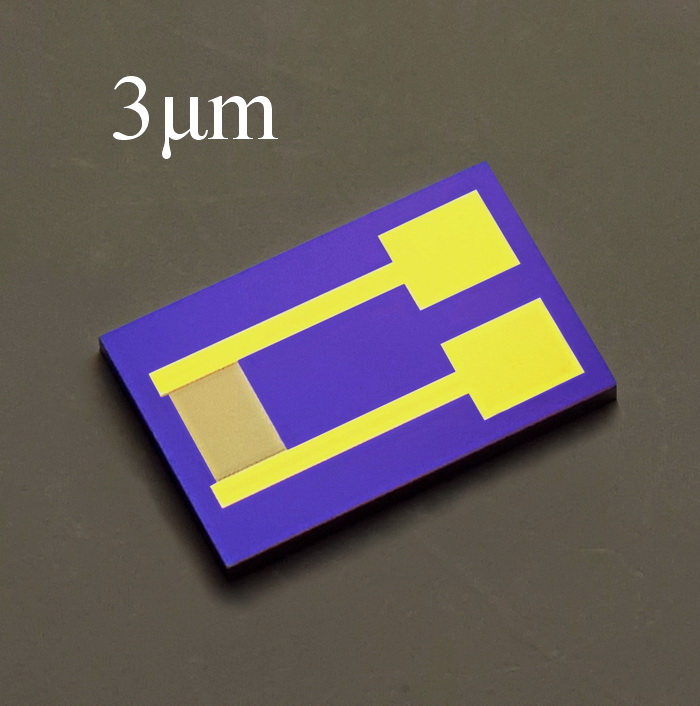

2. Line width: 5 u m, line spacing: 3 u m, finger length: 1.6mm, interdigital logarithm: 75 (150 fingers).
3. The electrode substrate is monocrystalline silicon, and silicon dioxide is grown on the surface of the silicon wafer with a thickness of 300nm;
4. Metal layer structure: Ti/Au, thickness is 30nm, 100nm;
5. Electrode operating temperature range: -150℃~500℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 7. Large quantity and price favorably.
