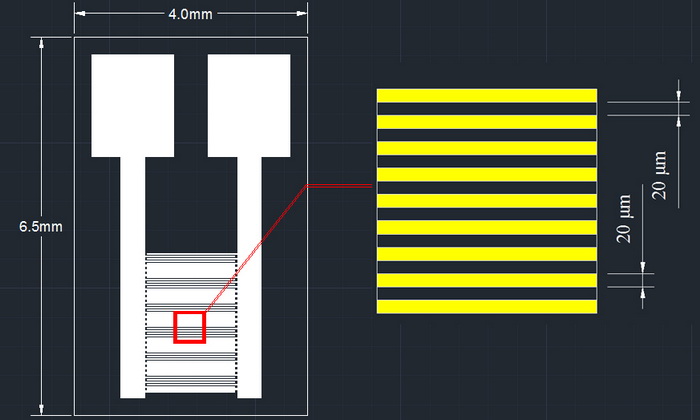

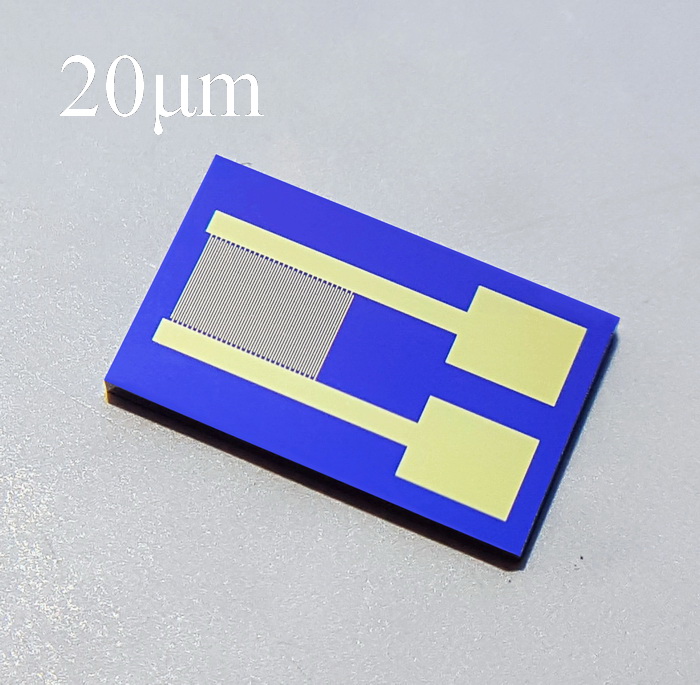

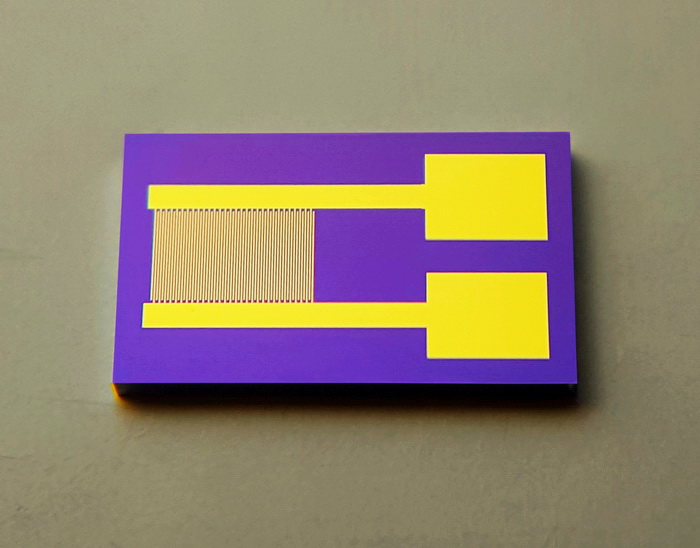

1. Dimensions: 4mmr6.5mm*0.52mm.
2. Line width: 20 um, line spacing: 20 um, finger length: 1.6mm, interdigital logarithm: 30 (60 fingers).
3. The electrode substrate is monocrystalline silicon, and silicon dioxide is grown on the surface of the silicon wafer with a thickness of 300nm;
4. Metal layer structure: Ti/Au, thickness is 30nm, 100nm;
5. Electrode operating temperature range: -150℃~500℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality.
