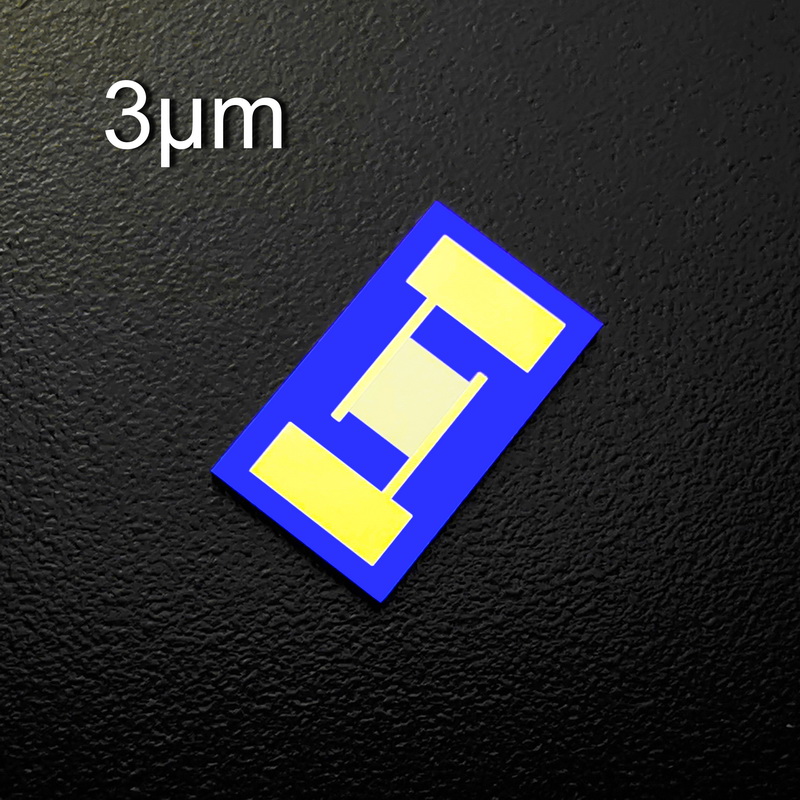

3 μm silicon-based interdigital electrode capacitance array gas humidity biosensor chip MEMS high precision
| 【Numbering】BK2021012604 | 【CAS】cas | ||
| 【Item No.】BK2021012604 | 【specification】 | ||
|
|||

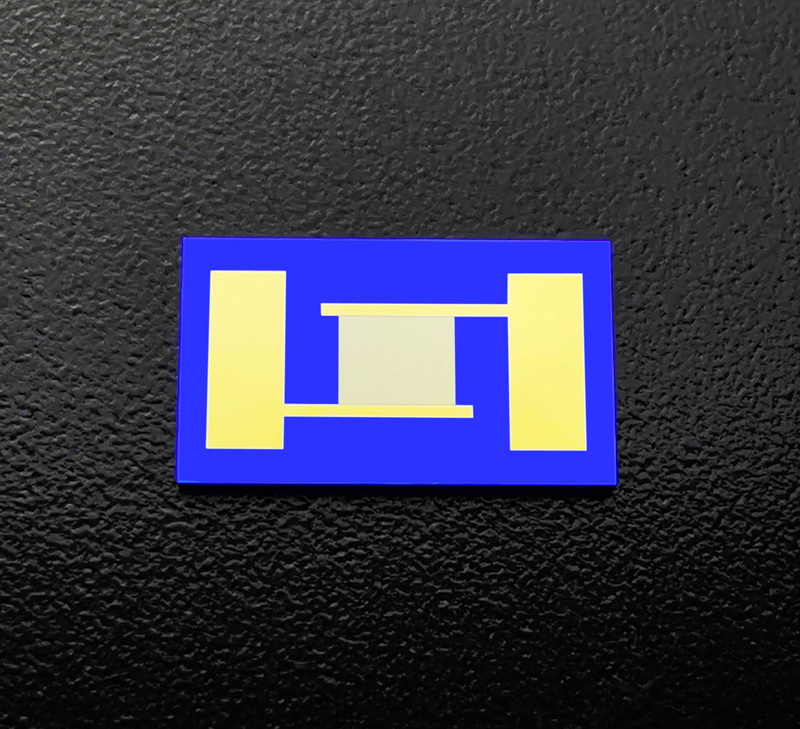

1. The electrode substrate is monocrystalline silicon, and silicon dioxide is grown on the surface of the silicon wafer, with a thickness of 300nm; dimensions: 4mm*6mm*0.52mm.

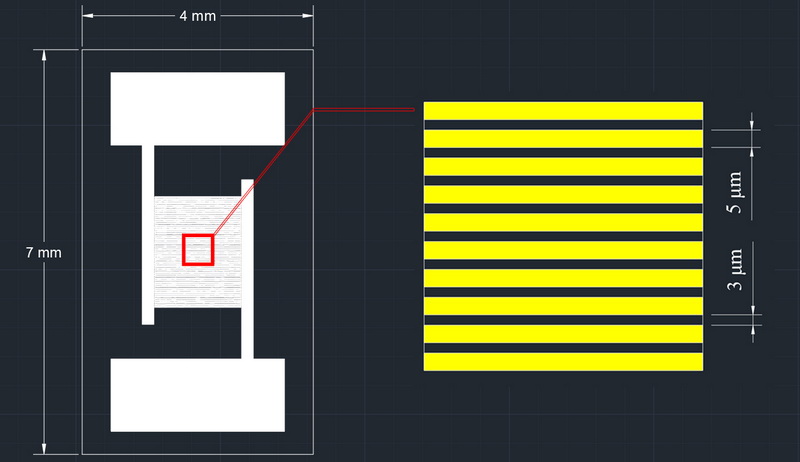

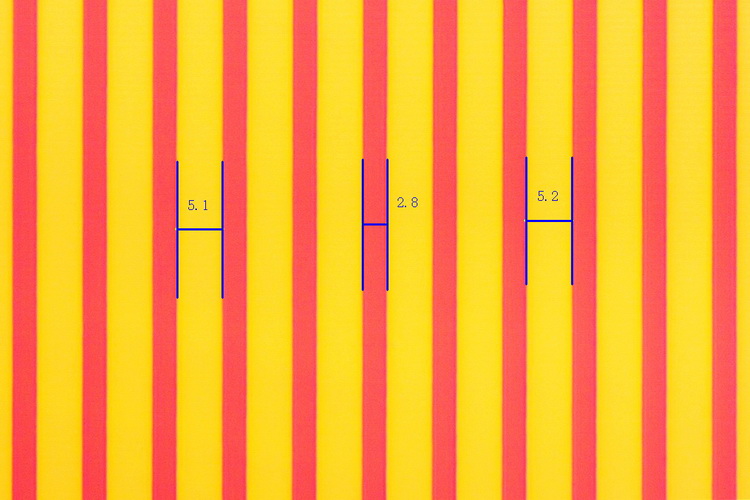

2. Line spacing: 3 u m, line width: 5 u m, finger length: 1.5mm, interdigital logarithm: 120 (240 finger).
3. Metal layer structure: Cr/Au, thickness is 30nm, 100nm;
4. Electrode operating temperature range: -150℃～500℃;
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
Message
2. Line spacing: 3 u m, line width: 5 u m, finger length: 1.5mm, interdigital logarithm: 120 (240 finger).
3. Metal layer structure: Cr/Au, thickness is 30nm, 100nm;
4. Electrode operating temperature range: -150℃～500℃;
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
We provide various interdigital electrodes. Including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
