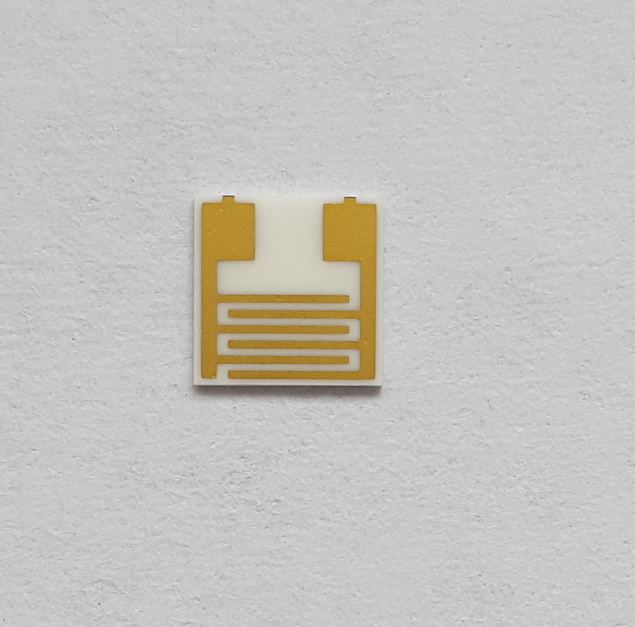

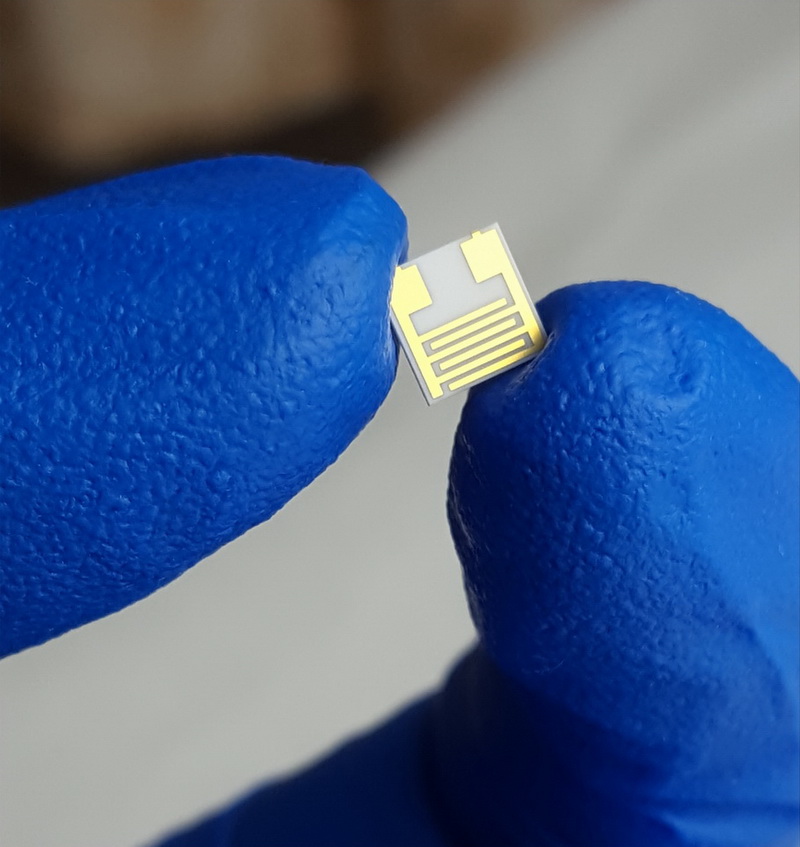

5mmX5mm interdigital gold electrode capacitance array ceramic circuit biogas humidity sensor chip scientific research
| 【Numbering】BK2021012503 | 【CAS】cas | ||
| 【Item No.】BK2021012503 | 【specification】 | ||
|
|||

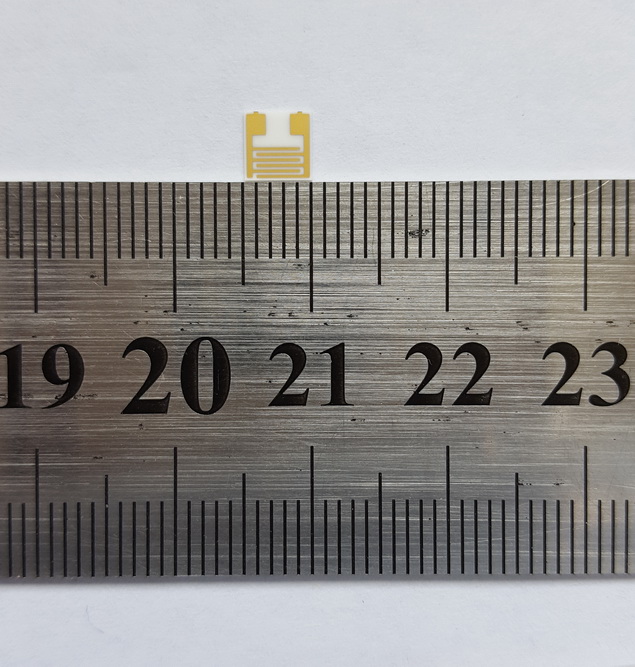

1. Substrate: Alumina ceramic; Dimensions: 5mm*5mm.

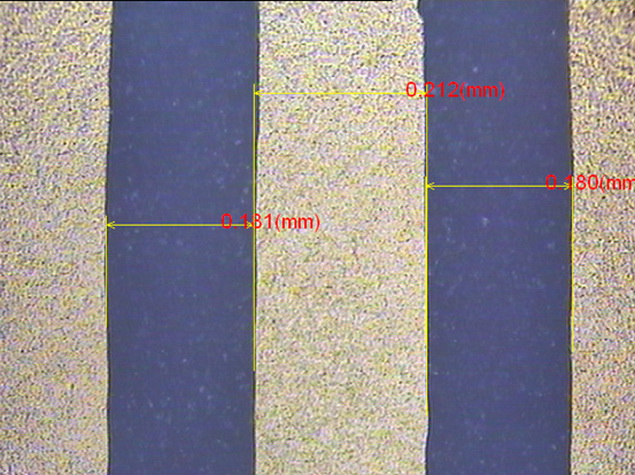

2. Line width: 215um, line spacing: 185um, finger length 3.2mm; number of interdigital pairs: 3 pairs (6 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 2um, 1um, 1um.
4. The electrode operating temperature range is -150℃～350℃.
5. The product can be used as the core component of electrochemical, medical, and humidity sensors with reliable performance.
Message
2. Line width: 215um, line spacing: 185um, finger length 3.2mm; number of interdigital pairs: 3 pairs (6 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 2um, 1um, 1um.
4. The electrode operating temperature range is -150℃～350℃.
5. The product can be used as the core component of electrochemical, medical, and humidity sensors with reliable performance.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, PCB process) , MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
Message
|
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance.The website pictures are from the Internet. The pictures are for reference only. Please take the real object as the standard. In case of infringement, please contact us to delete them immediately. |
