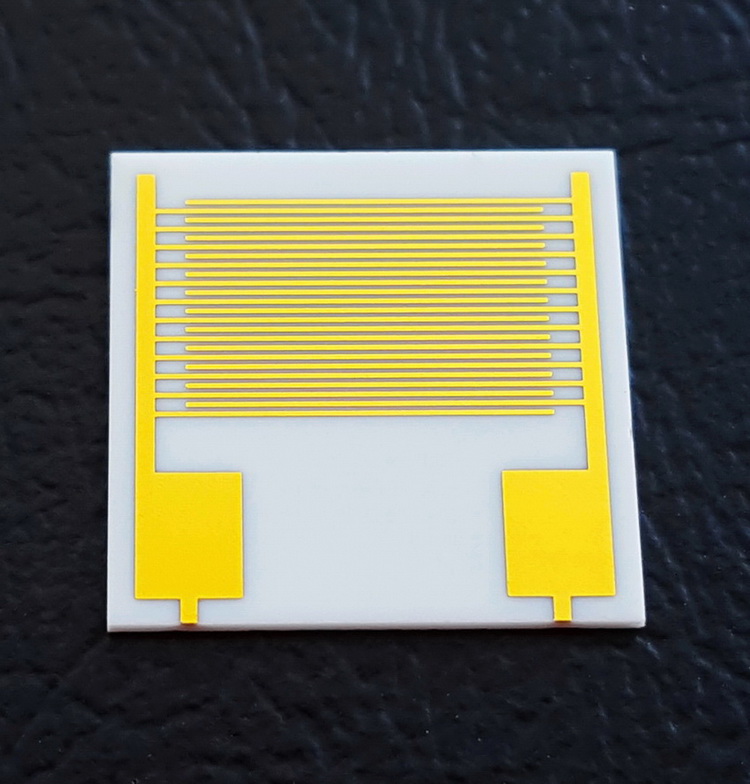

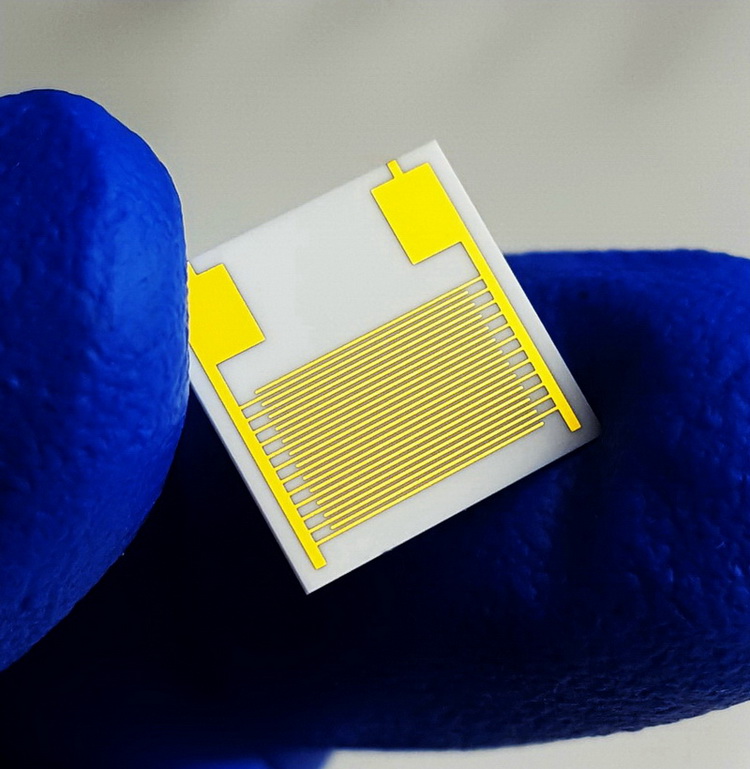

100μm interdigital gold electrode film circuit IDE capacitor array gas humidity biosensor chip
| 【Numbering】BK2021012502 | 【CAS】cas | ||
| 【Item No.】BK2021012502 | 【specification】 | ||
|
|||
1. Substrate: alumina ceramic, thickness 0.38mm; external dimension: 10mm*10mm.
2. Line width: 100 μm, line spacing: 100 μm, finger length: 7.7mm. Interdigital pairs: 12 pairs (24 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 5um, 4um, 1um.
Message
2. Line width: 100 μm, line spacing: 100 μm, finger length: 7.7mm. Interdigital pairs: 12 pairs (24 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 5um, 4um, 1um.
4. Applicable temperature: -150℃~350℃.
5. Large pads make it easier to operate and observe in experiments.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and spacing, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
Message
|
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance.The website pictures are from the Internet. The pictures are for reference only. Please take the real object as the standard. In case of infringement, please contact us to delete them immediately. |
